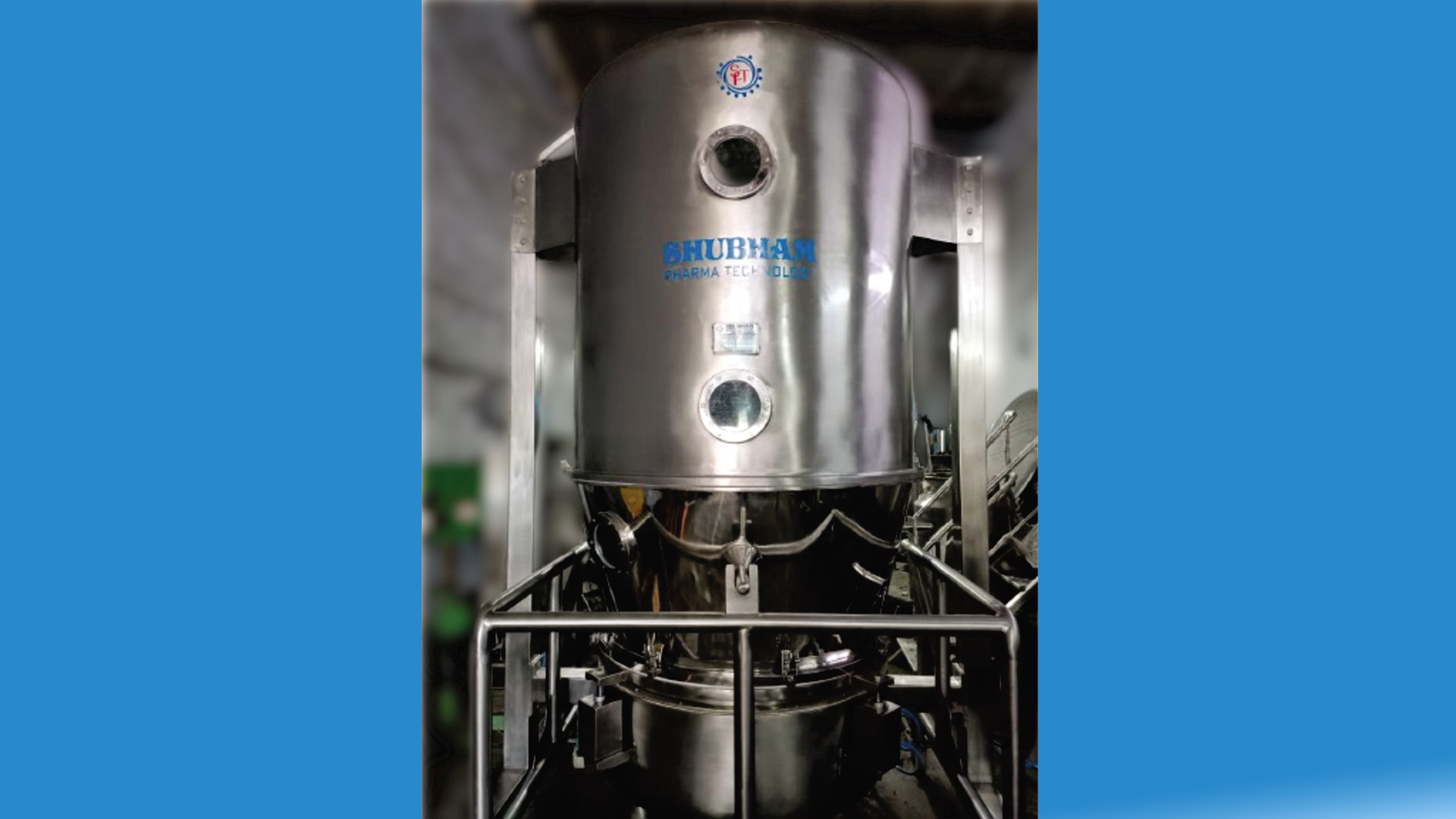

The Fluid Bed Dryer Manufacturer finds their application in Pharmaceuticals, Bulk Drugs, Dyes & Chemicals, Phyto- Chemicals, Catalysts, Food Products & Starch derivatives, Pesticides etc. A Fluid Bed Dryer is intended for fast and stable drying of particles, crystals and medium-sized stones.

Main Features :-

Optional Features :-

Model	FBD-10	FBD-30	FBD-60	FBD-120	FBD-200	FBD-300	FBD-500	FBD-600
Bowl Volume (Liters)	40	115	215	430	680	1050	1620	1900
Batch Size (Kgs)	4-10	15-30	40-60	80-120	140-200	230-300	390-500	520-600
Heating Load: (Kw) Electric Heating	9	24	36	54	75	96	*	*
Approx Steam Consumption Kgs. Hr. (Steampressure 3.5kg/cm2)	15	25	50	100	170	250	300	330
Drying Temp. 0C	50-80	50-80	50-80	50-80	50-80	50-80	50-80	50-80
Motor (H.P.)	2/3	5/7.5	10/12.5	15/20	20/25	30/40	50/60	60/75
Height H1 (Approx) in mm	1700	2000	2400	3000	3200	3500	4000	3800
Height H2 (Approx) in mm	2100	2350	2800	3400	3800	4400	4800	5300
Width (Approx) in mm	1000	1500	1600	1750	2200	2350	2550	2700
Length (Approx) in mm	900	1200	1400	1600	1800	2000	2200	2400
